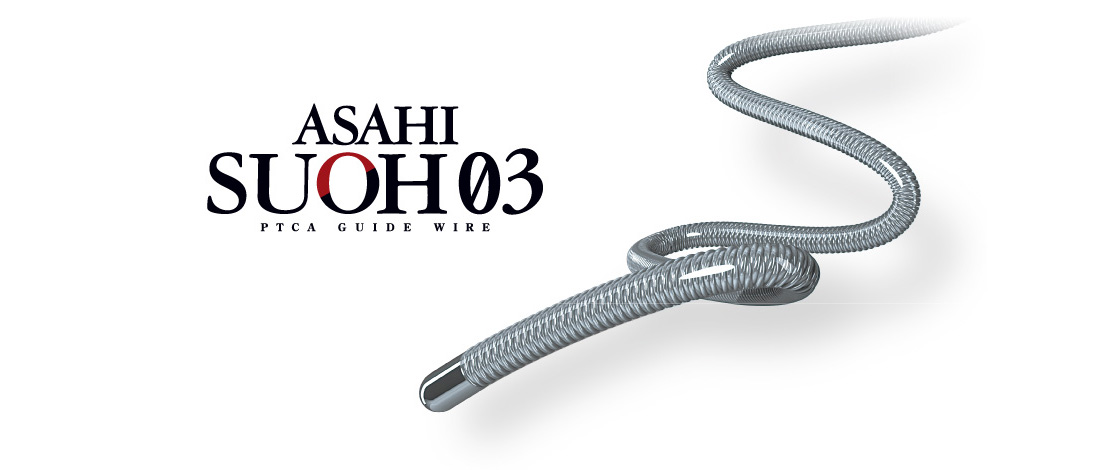

Evolutionary coronary guide wire form ASAHI INTECC Softest available tip load at 0.3 gf

Our new soft as silk guide wire provides new opportunities to treat complex PCI cases

---

Characteristics

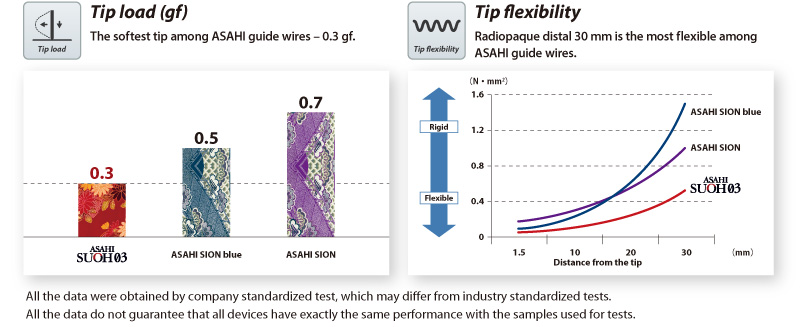

0.3 gf Tip load

• Softest available tip load at 0.3 gf among ASAHI guide wires.
• Lightest market available tip load of 0.3 gf*.
• Improved shaft design allows superb trackability and crossability in severely tortuous vessels.

Flexibility and maneuverability

• ASAHI's proprietary Composite Core design gives highly effective torque transmission and flexibility.

---

Mini pre-shape tip

Mini pre-shape tips available for cases when precision is necessary. Also available with straight tips.

---

Safety tip load and flexibility

---

Superior tip flexibility

Flexible shaft provides superb trackability and crossability in severe tortuosity.
The long radiopaque segment provides good visualization.

---

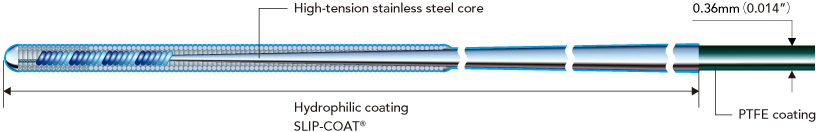

Structure & Odering information

Product	Catalog No.	Diameter	Coating	Usable length	Coil length	Radiopaque length	Tip shape
ASAHI SUOH 03	AHW14R013S	0.36mm (0.014inch)	Hydrophilic coating (SLIP-COAT®) 52cm	190cm	19cm	3cm	Straight
	AHW14R013P	0.36mm (0.014inch)	Hydrophilic coating (SLIP-COAT®) 52cm	190cm	19cm	3cm	Pre-shape
	AHW14R313S	0.36mm (0.014inch)	Hydrophilic coating (SLIP-COAT®) 52cm	300cm	19cm	3cm	Straight
	AHW14R313P	0.36mm (0.014inch)	Hydrophilic coating (SLIP-COAT®) 52cm	300cm	19cm	3cm	Pre-shape
