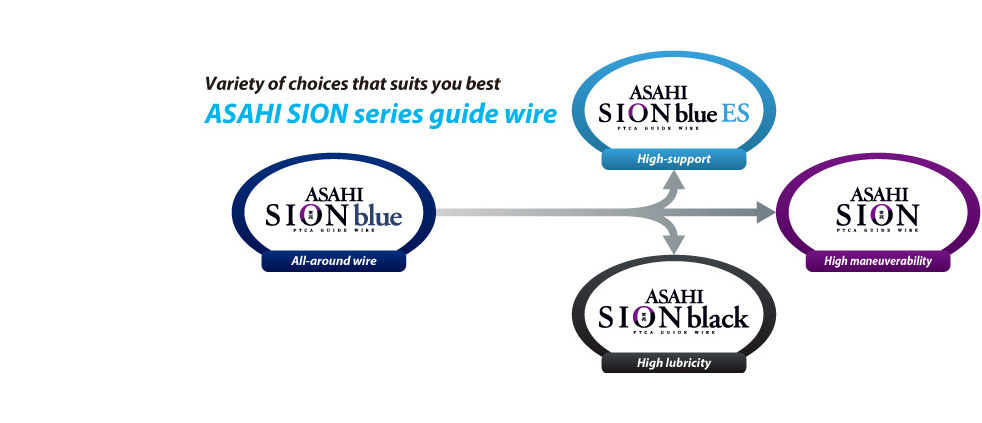

ASAHI SION blue ES
SION TECC
- Enhanced tip durability
- Combination of flexibility and torque force.
- Reduced whipping of the wire due to superior torque response.
Characteristics
- Contribute to a stable device delivery
- Inherits the maneuverability of SION TECC

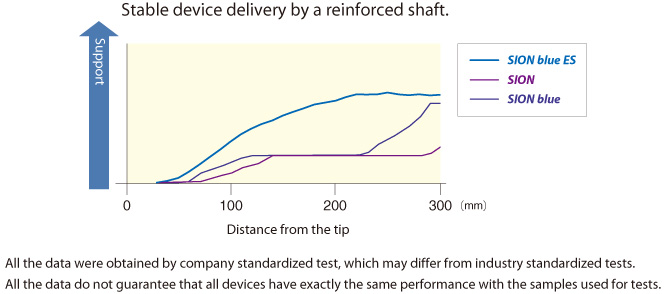

Well balanced reinforced shaft enhances guide catheter support during device delivery.
Usable as a frontline guide wire with easy control for branch selection and minimal loss of steerability in tortuous vessels.
support

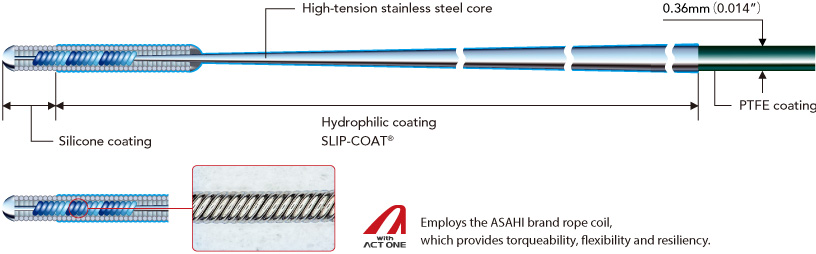

Structure & Odering information
| Catalog No. | Diameter | Usable length | Coil length | Radiopaque length | Tip shape | Tip load |
|---|---|---|---|---|---|---|
| AHW14R017S | 0.36mm (0.014inch) |
190cm | 8.5cm | 3cm | Straight | 0.5gf |
| AHW14R017J | 0.36mm (0.014inch) |
190cm | 8.5cm | 3cm | J | 0.5gf |
| AHW14R317S | 0.36mm (0.014inch) |
300cm | 8.5cm | 3cm | Straight | 0.5gf |
| AHW14R317J | 0.36mm (0.014inch) |
300cm | 8.5cm | 3cm | J | 0.5gf |
