ASAHI SION blue

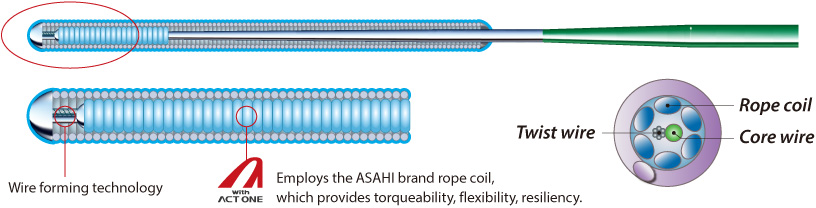

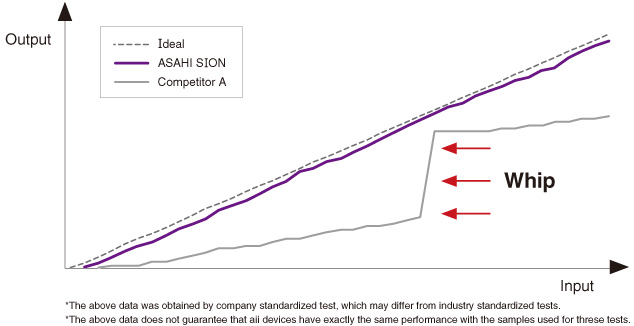

Composite Core
- Multiple wire components to enhance durability and torque transmission.
Tip Durability
- A guide wire is knuckled and pushed into a simulated artery. The SION Series wires possess a durable tip suited for treating multiple lesions.

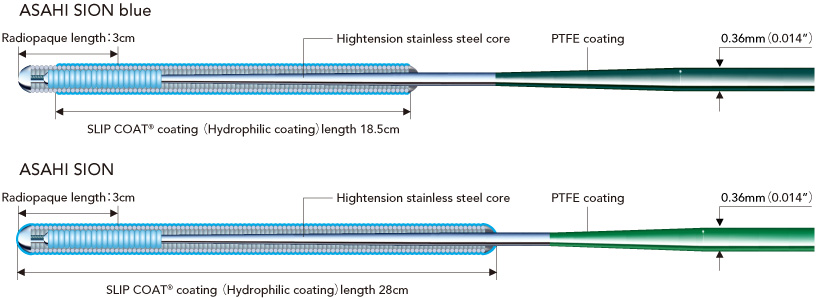

Tip Coating

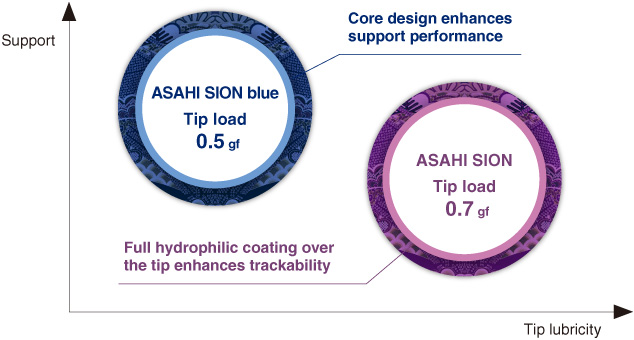

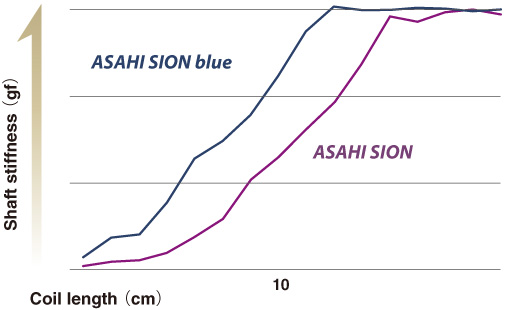

Support Graph

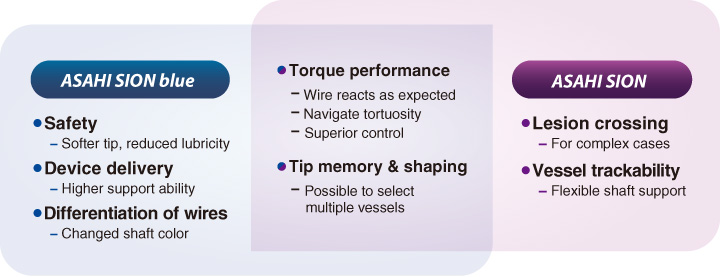

Differentiation of wire
| Product | Catalog No. | Diameter | Usable length | Spring coil length | Radiopaque Length | Tip shape |
|---|---|---|---|---|---|---|
| ASAHI SION blue | AHW14R004S | 0.36mm (0.014inch) |
180cm | 20cm | 3cm | Straight |
| AHW14R304S | 0.36mm (0.014inch) |
300cm | 20cm | 3cm | Straight | |
| AHW14R004J | 0.36mm (0.014inch) |
180cm | 20cm | 3cm | J | |
| AHW14R304J | 0.36mm (0.014inch) |
300cm | 20cm | 3cm | J | |
| ASAHI SION | AHW14R001S | 0.36mm (0.014inch) |
180cm | 28cm | 3cm | Straight |
| AHW14R301S | 0.36mm (0.014inch) |
300cm | 28cm | 3cm | Straight | |
| AHW14R001J | 0.36mm (0.014inch) |
180cm | 28cm | 3cm | J | |
| AHW14R301J | 0.36mm (0.014inch) |
300cm | 28cm | 3cm | J |
