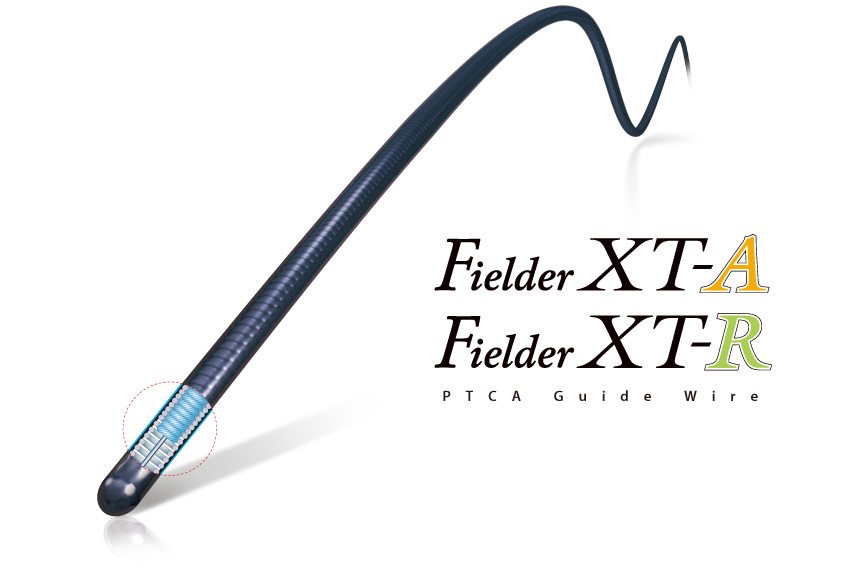

Fielder XT-A / Fielder XT-R

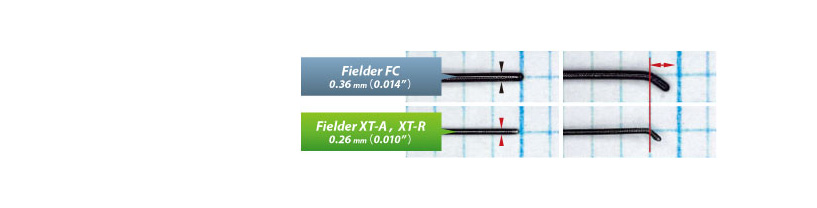

Small tip Shapability
It provides the potential for the loose tissue and collateral channel tracking by a small curve and tapered tip.

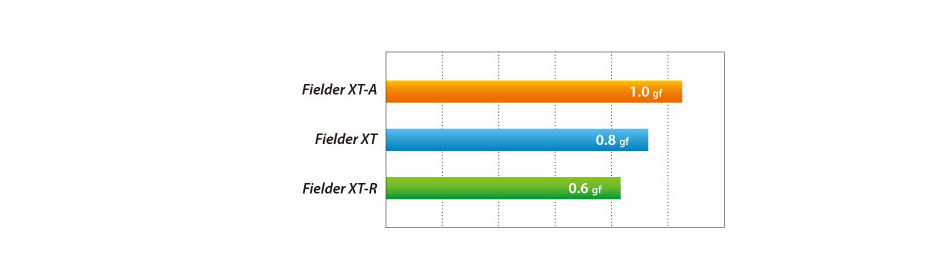

Tip load

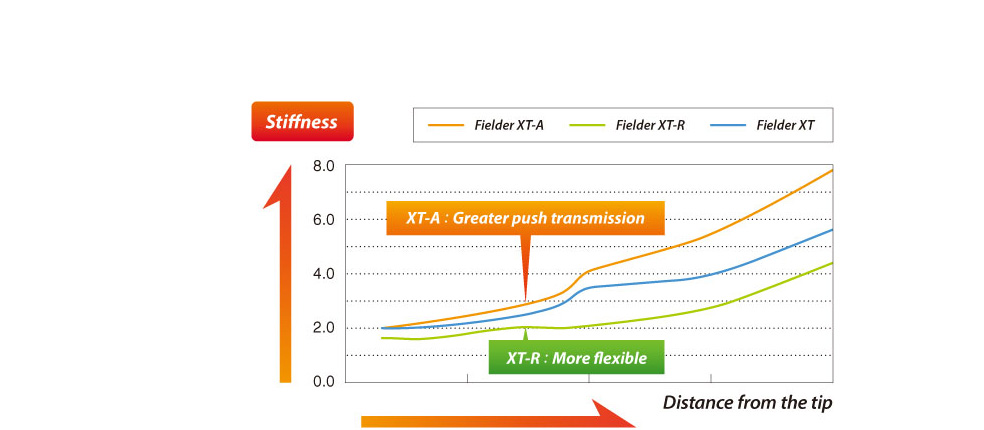

Tip flexibility
All the data were obtained by company standardized test, which may differ from industry standardized tests.
All the data do not guarantee that all devices have exactly the same performance with the samples used for tests.

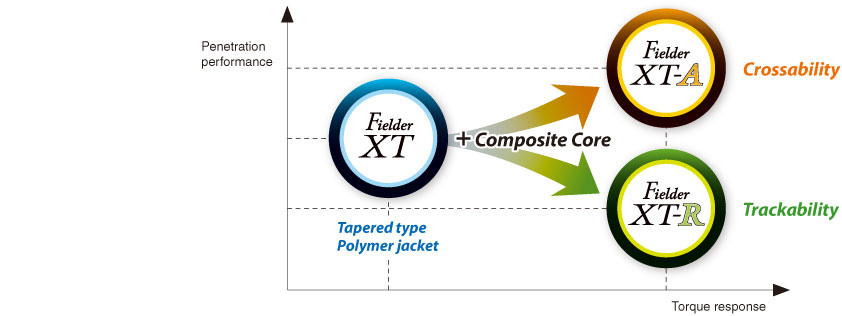

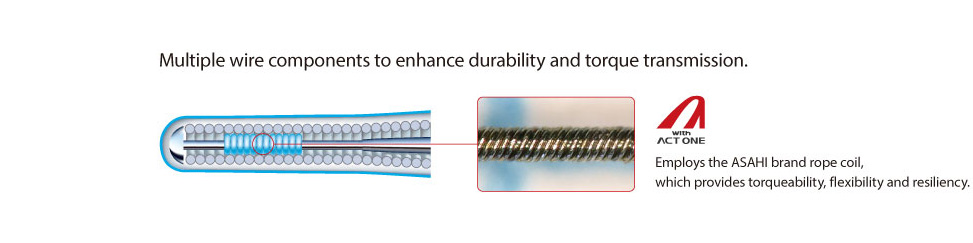

Composite Core

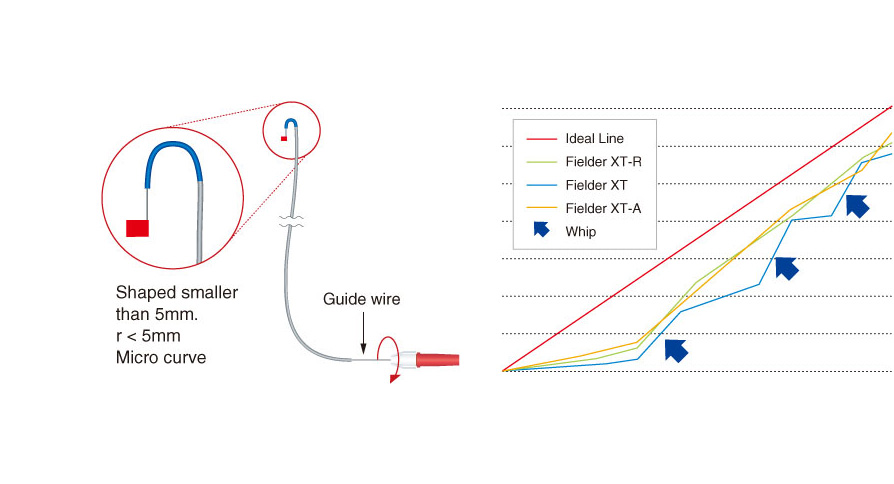

Torque response
No whip : It provides better control ability by fixing guide wire tip to the right direction.
All the data were obtained by company standardized test, which may differ from industry standardized tests.
All the data do not prove that all devices have exactly the same performance with the samples used for tests.

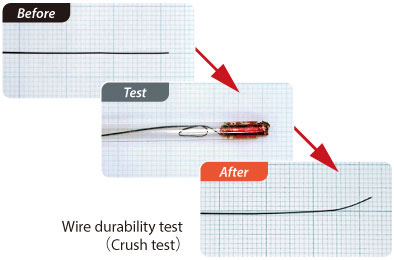

Tip durability
A guide wire is knuckled and pushed into a simulated artery but Fielder XT-A and Fielder XT-R possess a durable tip suited for treating multiple lesions.
All the data were obtained by company standardized test, which may differ from industry standardized tests. All the data do not guarantee that all devices have exactly the same performance with the samples used for tests.

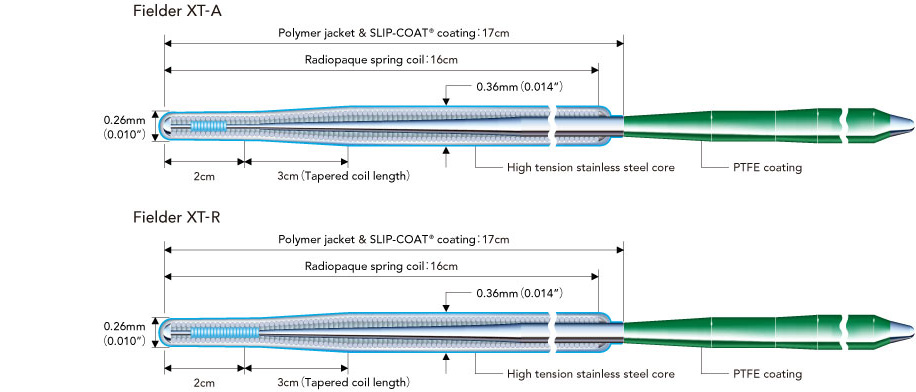

Structure & Odering information
| Product | Catalog No. | Diameter | Usable length | Spring coil length |
Radiopaque length |
Tip shape |
|---|---|---|---|---|---|---|
| Fielder XT-A | APW14R009S | 0.36/0.26mm (0.014/0.010inch) |
190cm | 16cm | 16cm | Straight |
| APW14R309S | 0.36/0.26mm (0.014/0.010inch) |
300cm | 16cm | 16cm | Straight | |
| Fielder XT-R | APW14R005S | 0.36/0.26mm (0.014/0.010inch) |
190cm | 16cm | 16cm | Straight |
| APW14R305S | 0.36/0.26mm (0.014/0.010inch) |
300cm | 16cm | 16cm | Straight |
